Roland XS-1HD

Screen Modes

The XS-1HD provides three screen modes for a variety of applications.
In addition to the Matrix Mode,
there's a Switcher = Video Mixer = Mode that lets you use Picture-in-Picture or key-compositing, dissolve transitions and provides a multi-view output,
and a Split Mode that can display up to three PinP images.

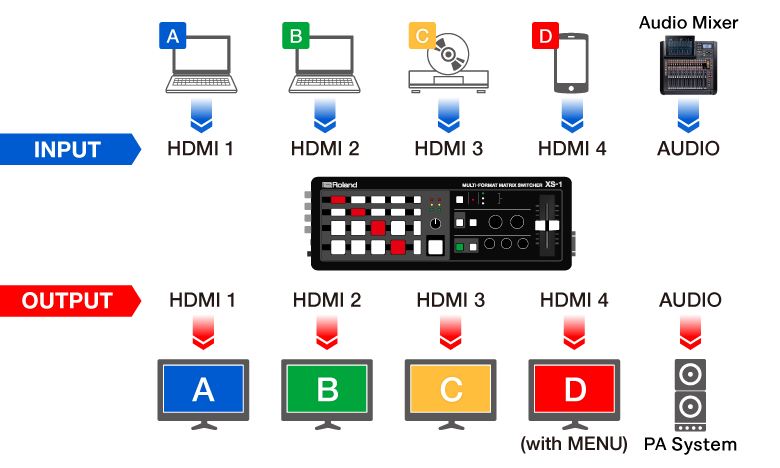

Matrix Mode

Four input video signals can be individually switched to one of four outputs.
Since a scaler is provided for each of the four inputs, you can connect a mix of video devices such as cameras, PCs, media players, Blu-ray discs, or smartphones.
You can switch between videos by fading-in/out and can adjust desired transition time using the TIME knob.

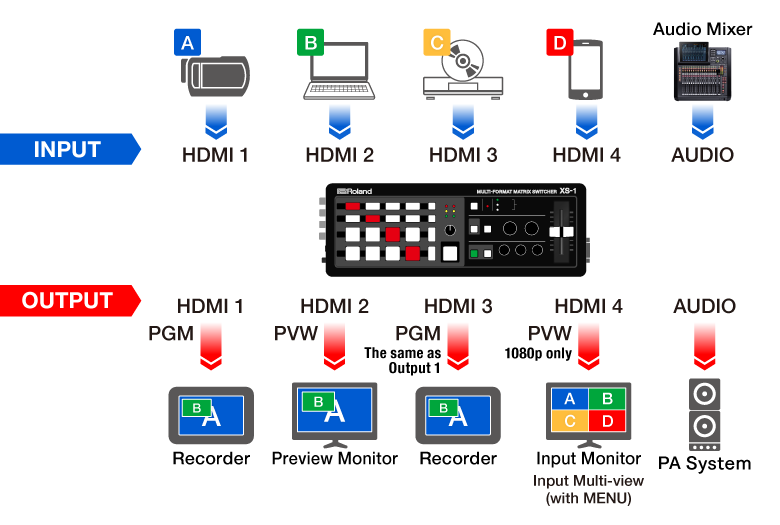

Switcher (Video-Mixer) Mode

This mode lets you use a cross-dissolve to seamlessly transition between sources, or use PinP or key-compositing.
A multi-view input preview can be output from HDMI OUT 4 for confirming input sources while operating the unit.
If you're not using PinP or key-compositing, you can use an AUX bus to output a separate video signal to a confidence monitor or other destination.

Split Mode

This mode composites multiple videos into a single screen for output.
Up to three small screens can be composited into a background video.
The position, size and layering order of the inset screens can be individually set.
This is useful when it is required show multiple videos simultaneously, such as when recording e-learning content or presentations.
