Roland XS-1HD

Applications & Connection Examples

The XS-1HD is ideal for supporting live event productions that involve a variety of video signals.
A high quality scaler is provided on each input, allowing for fast setup.
At only the width of a 13 inch laptop computer, the XS-1HD allows realtime operation in even the most space-limited working environments.

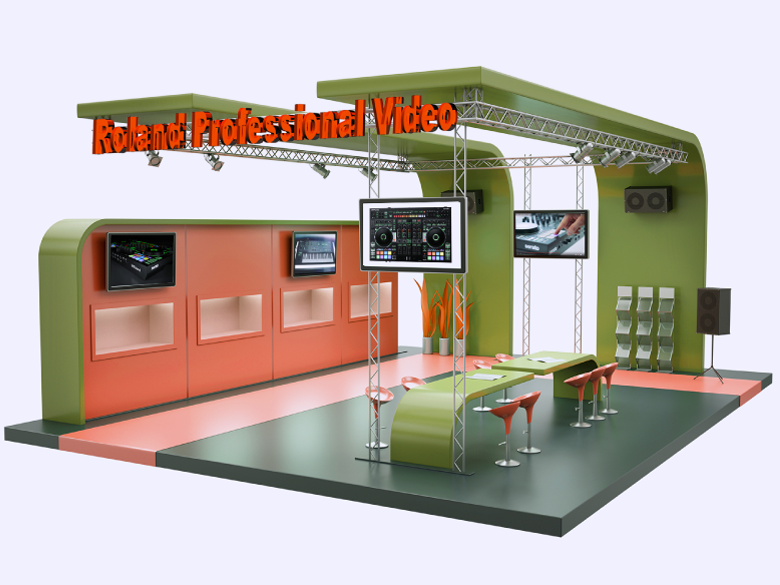

EXHIBITS

The XS-1HD can switch video from up to four sources such as cameras, computers, or media players, and freely assign them to LCD displays or projectors.
A built-in scaler on each input means that the position or zoom can be adjusted even if the video signals being input have different formats.
Since an EDID emulator is built-in, the correct resolution will be sent from computers to the switcher.
You can instantly change the what is being sent to any display by recalling previously-saved preset memories as the event progresses or when appropriate for the situation.

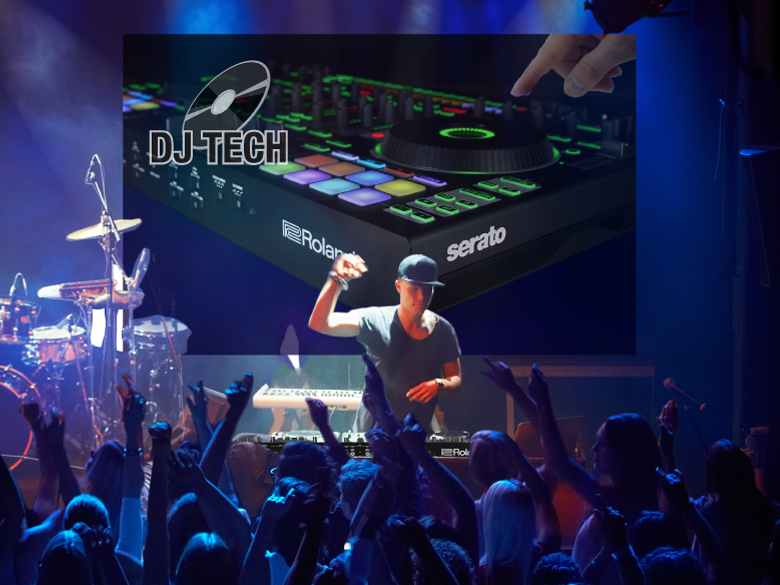

STAGE EVENTS / CONFERENCES
WITH ONE OR MORE VIDEO PROJECTORS

Matrix mode lets you switch to a total of four output destinations, such as a main screen, a secondary screen, a monitor for the presenter, and a digital signage for general information.
Switcher mode is convenient when the operator requires traditional realtime switching capability with a multiview preview, PinP, key-compositing, and dissolve transitions.

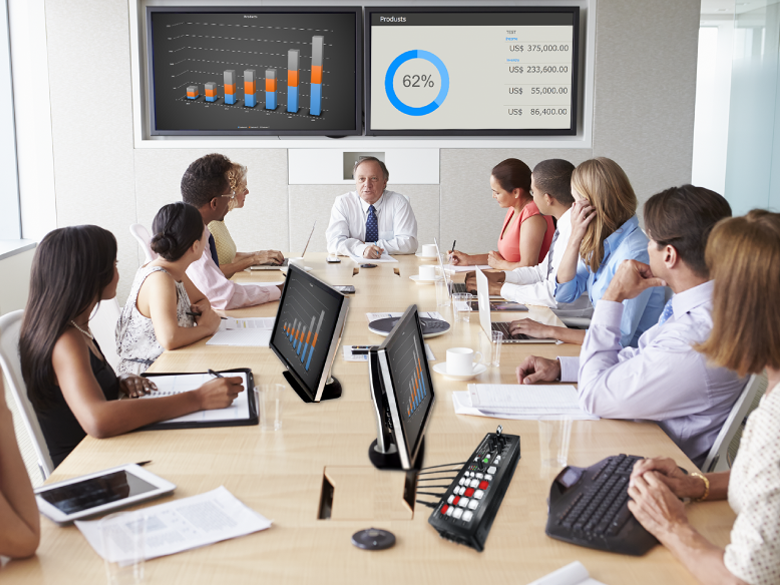

CONFERENCE ROOMS WITH MULTIPLE DISPLAYS

The built-in scalers and multiple operation modes make it ideal for use in event spaces since it handles ever changing input source types and resolutions and adapts to different output destination requirements easily. HDCP compliance makes it indispensable when clients want to playback HDCP-protected HDMI signals from sources such as Blu-ray or smartphones. Still images can be loaded from USB and are great for convenient displaying logos.

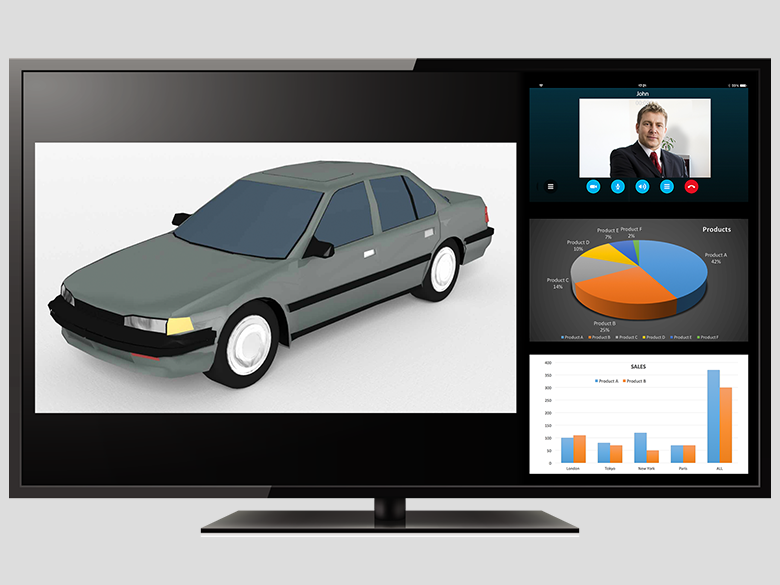

MULTIPLE IMAGES ON AN EXISTING DISPLAY

By showing multiple images such as PowerPoint, video, or TV conferences on a single screen, you can avoid the bother of switching between the images.
This is also a convenient way to compare information from multiple presenters.
The XS-1HD provides a split mode that can display up to four images side by side as shown here.
Since the screen layout can also be switched at a touch, it's usable even by those who are not skilled at equipment operation.
